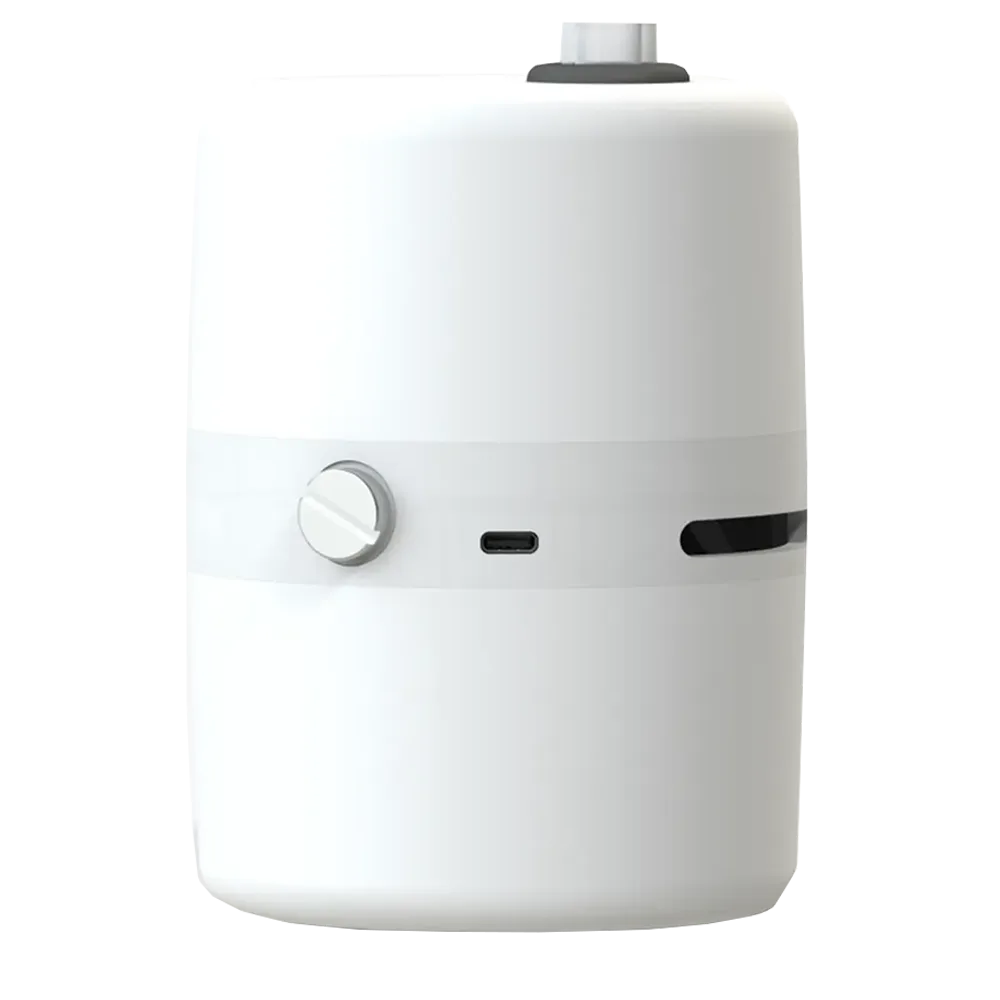

SafyrOPC Instrument
Ready-to-use optical particle counter for controlled environments
SafyrOPC Instrument is a complete particle-counting device for fixed or portable monitoring in cleanrooms and controlled environments. It integrates Sensor SafyrOPC, individually calibrated according to ISO 21501-4, with power, communication and an enclosure designed for direct deployment.
It can operate as a standalone instrument or as part of a continuous monitoring architecture.
- 5 particle-size channels
- 2.83 L/min controlled sampling flow
- ISO 21501-4 individual calibration
- LoRa communication / battery operation
Designed for direct deployment in controlled environments
SafyrOPC Instrument combines calibrated particle counting with the functions required for direct deployment: controlled sampling, communication, power management and an enclosure adapted to controlled environments.
Controlled particle counting
Defined sampling flow and particle-size channels for repeatable particle-count measurements.
Individual calibration
The integrated Sensor SafyrOPC is individually calibrated according to ISO 21501-4.
Wireless monitoring
LoRa communication supports distributed monitoring architectures.
Flexible deployment
Fixed or portable operation with wired or battery-powered configurations.
Technical specifications
Main particle-counting, communication, power and environmental specifications.
| Designation | Values |
|---|---|
| Count channels | Channel 1: pcs >0.3 μmChannel 2: pcs >0.5 μmChannel 3: pcs >1.0 μmChannel 4: pcs >2.5 μmChannel 5: pcs >5.0 μm |
| Limit concentration | 8,500,000 part/ft³ |
| Sampling flow | 2.83 l/min (0.1 cfm) |
| Sampling flow error | +/- 10% |
| High efficiency filtration at discharge: | patented |
| Accelerometer | Yes |
| Sampling Time / Sample Volume: | Cumulative 10 minutes moving average/ 28.3 l |
| Update frequency | 1 minute |
| Unit | Particles per Cubic Feet (Part/CF) |
| Calibration | Monodisperse latex sphere (NIST certificate) - ISO 21501-4 calibration bench |
| Counting efficiency: Manufacturer | Channel 0.3µm: (35 +/- 15) %Channel 0.5µm: (100 +/- 20) % |
| Statistical rate of false counting (All Channels ≥ 0.3 µm): | ≤ 70.7 part/m³ or ≤ 2 part/CF |
| Power | On batteries or mains 5VDC - 1A |
| Energy Block SB Model: | Autonomy (O mains): 12h - LiPo battery 3.7V 4.5Ah |
| Energy Block Model AB168 | Autonomy (O mains): 168h - 3.7V 18Ah LiPo battery |
| Communication | Proprietary LoRa (measurement) + BLE (configuration, via nRF Connect app) |
| LoRa frequency range | 869.5 MHz |
| BLE frequency range | 2.4 GHz |
| Number of channels available (1 receiver per ID) | 5 |
| Proprietary LoRa range (869.5 MHz) | <400 m in open field, <5.50 m indoors |
| Decontamination | Materials compatible with surface disinfectants by wiping. Resistant to airborne H₂O₂ |
| Environmental conditions of use | Temperature: 5-35°C/Humidity: 0-70% (Not condensed) |
| Size | Height: 147 mm / Diameter: 103mm |
| Weight | SafyrOPC with Energy block SB: 420 gSafyrOPC with Energy block AB168: 720 g |
| Case material | White part: ABS-PC/ Di using part: PC |
| SafyrOPC delivered with: | HEPA H14 filter - isokinetic probe - Power CordOperating instructions - Installation certificate - Calibration certificate |
Resources for deploying SafyrOPC Instrument
User, communication and deployment documentation is available for standalone and networked installations.
Individual calibration and documented particle-counting performance
Each SafyrOPC Instrument integrates an individually calibrated Sensor SafyrOPC and is supplied with calibration documentation specific to the sensing unit.
Individual calibration framework
Sensor SafyrOPC is individually calibrated according to ISO 21501-4.
Unit-specific calibration results
Individual calibration documentation is supplied for the sensing unit.
View certificate exampleDocumented technical performance
- Size channels
- Sampling flow
- Counting efficiency
- False-count information
Monitoring suitability depends on the complete application
SafyrOPC Instrument can support continuous or periodic cleanroom monitoring strategies. Suitability for a specific ISO 14644 or GMP application depends on the complete sampling plan, monitoring architecture, sample volume, monitoring locations and applicable requirements.
ISO 21501-4 calibration should not be interpreted as universal compliance with every cleanroom or GMP monitoring application.
Integrating SafyrOPC into a monitoring system?
Monitoring performance depends on sampling locations, communication architecture, data collection, calibration strategy and periodic verification.
TERA Sensor can support the monitoring architecture and system integration, while TERA Tronics can extend the project when custom electronics, gateways or additional hardware development are required.
FAQ
Sensor SafyrOPC is the OEM particle-counting module intended for integration by equipment manufacturers. SafyrOPC Instrument is the complete, ready-to-use device built around that module, with its own power, communication and enclosure for direct deployment.
Yes. Paired with its LoRa gateway, SafyrOPC Instrument can operate continuously between periodic classifications. Its role in a specific monitoring architecture still depends on the applicable sampling plan and requirements.
ISO 21501-4 defines how a light-scattering particle counter is calibrated and verified: particle-size channels, counting efficiency, sampling flow and related metrological performance. The integrated Sensor SafyrOPC module is individually calibrated to this standard.
Yes. Multiple instruments can be deployed across rooms or process areas and communicate over LoRa to a shared gateway for a distributed monitoring architecture.
SafyrOPC Instrument transmits measurement data to a dedicated LoRa gateway over a proprietary protocol, supporting long-range, low-power data transmission from fixed or portable units to a central collection point. Device configuration (channel selection, parameters) is done separately over BLE, using the nRF Connect application.
Depending on the energy block, SafyrOPC Instrument runs up to 12 hours (SB model) or up to 168 hours (AB168 model) on battery, or continuously on mains power.
Yes. Its materials are compatible with surface disinfectants applied by wiping and it is resistant to airborne H₂O₂ decontamination.
Recalibration frequency depends on usage intensity, environmental conditions and the applicable quality system. Contact TERA Sensor to define a recalibration interval suited to your monitoring programme.
