NextPM datasheet
NEXT GENERATION PARTICULATE MATTER OEM SENSOR PM₁₀, PM₂.₅, PM₁
| Designation | Values | Unit |
|---|---|---|
| GENERAL | ||
| Technology | Optical | |
| Targeted pollutants | Particulate Matter | |
| Outputs | PM₁ PM₂.₅ PM₁₀ TSP ¹˒² Channel: 0.3 - 0.5 μm¹ Channel: 0.5 - 1 μm¹ Channel: 1 - 2.5 μm¹ Channel: 2.5 - 5 μm¹ Channel: 5 - 10 μm¹ Temperature ³ Relative Humidity ³ | μg/m³ & number of particles / L μg/m³ & number of particles / L μg/m³ & number of particles / L μg/m³ number of particles / L number of particles / L number of particles / L number of particles / L number of particles / L °C % |
| Airflow | 2.5 | L/min |
| Size (l * w * h) | Annex 1 | mm |
| Lifetime (MTTF) ⁴ | Up to 10 | years |
| PERFORMANCE | ||
| Particle Size detection range | 0.3 - 10 | μm diameter |
| Detection efficiency with 0.3 μm diameter particles | >50 | % |
| Concentration detection range / PM₁₀ - PM₂.₅ - PM₁ | 0 - 1000 | μg/m³ (Arizona dust A1 equivalent) |
| >1000 ⁵ | μg/m³ (Arizona dust A1 equivalent) | |
| Detection Limit | < 1 | μg/m³ (Arizona dust A1 equivalent) |
| Linearity error | < 5 | % |
| Repeatability error ⁶ | < 3 | % |
| Refresh rate | 1/10/60 | sec. |
| Warm-up time | 10 | sec. |
| Temperature influence | < 0.01 | μg/m³/°C |
| 0°C to 30°C | 0 | %/°C |
| -20°C to 0°C | < + 1.0 | %/°C |
| 30°C to 70°C | < - 0.8 | %/°C |
| ELECTRIC SPECIFICATIONS | ||
| Power supply | 5 | VDC |
| Power consumption in operation | < 80 300 | mA mA (Maximum) |
| Power consumption in Sleep Mode | < 5 | mA |
| COMMUNICATION | ||
| UART, Modbus (RS485) ⁷ | ||
| OTHER | ||
| Operating conditions | -20 to +70 253 to 343 | °C K |
| 0 - 95 uncondensed | % | |
| 500 to 1 500 | hPa | |
| Storage conditions | -20 to +70 | °C |
| 0 - 95 uncondensed | % | |
| 500 to 1500 | hPa | |
| Certifications | CE | |
| RoHS compliant | ||
| Dimensions and weight | L 62 mm x l 52.5 mm x H 23.6 mm | 45 g | |
| L 2.44 / W 2.05 / H 0.91 inches | 1.59 Oz |
¹ Only available since firmware version 1046 or later.
² Estimated from the other particle fractions and bibliography, validated in the field (available via Modbus only).
³ See the NextPM User Guide for more information about these data.
⁴ Lifespan can vary depending on the operating conditions.
⁵ At concentrations above 1000 µg/m³, accuracy decreases due to a higher linearity error.
⁶ Calculated on the fifteen-minute moving average output.
⁷ This communication protocol requires a converter, as described in the “NextPM RS485” document.

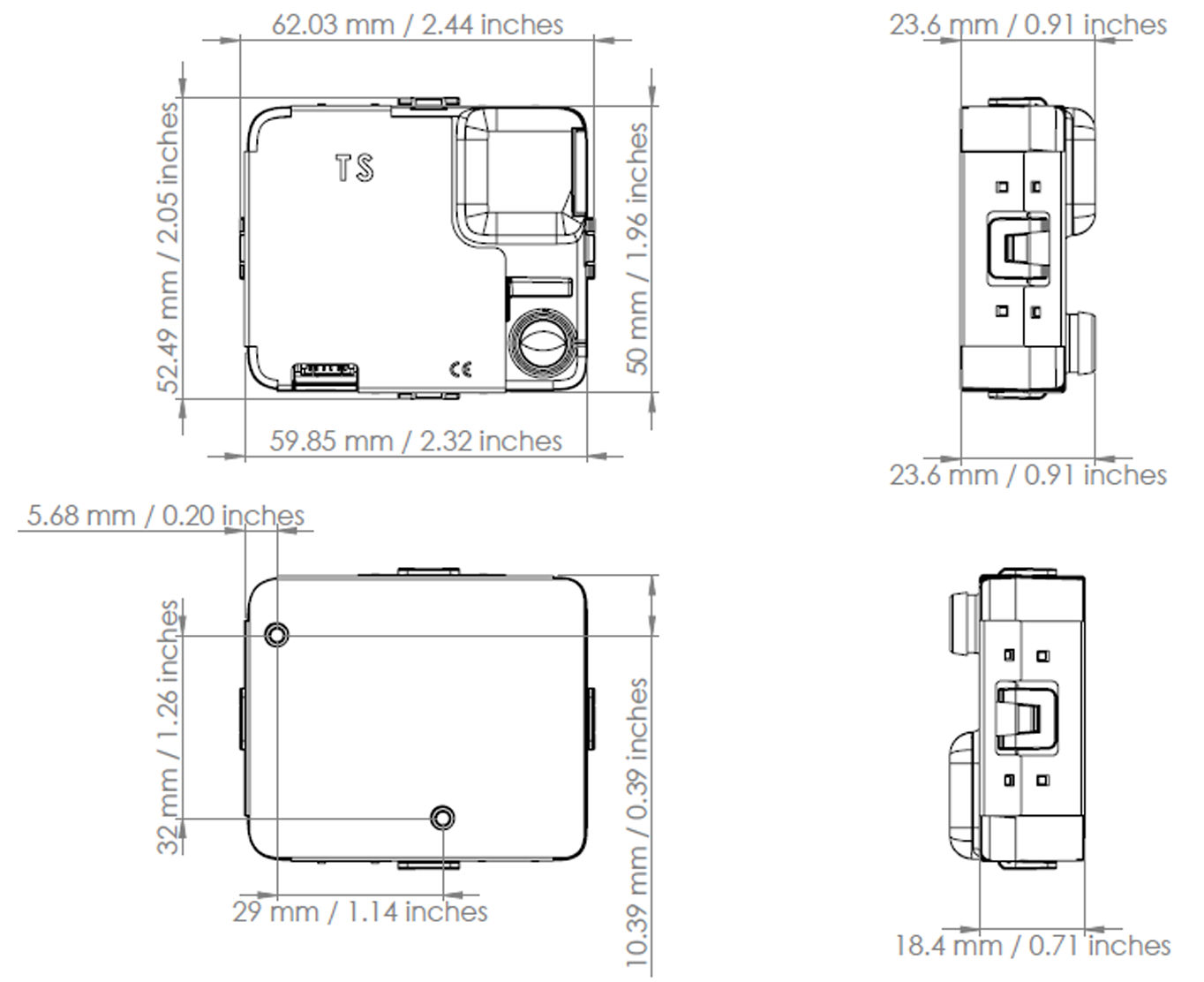

Mechanical specifications#
